Whatever cable or connector you require
“WE CAN MANUFACTURE IT
Copyright Rockdale 2023
We specialize in the manufacture of Active Optical Cables along with data Cables, Connectors, Adapters & Converters for the Audio, Video & Computer markets that gives our Clients an edge over the competition. By working with Customers of all levels on a daily basis, we have the ability to develop our products and services through the use of leading edge technology.
Our products cover virtually every communication application. They are the ultimate solution that will not only meet your current requirements, but your future ones too, with greater bandwidths, enhanced durability, and easier installation.
Technology moves fast and we keep up.
Do you want a successful import business?
We has helped hundreds of businesses sourcing -
Do you want a better supplier -
Then just email us here and we will guarantee you a better product -
ACTIVE FIBRE OPTIC CABLE
Long distance -
HDMI signal transmission 4K @60Hz without quality degradation.
Higher transmission than traditional copper cables that cannot transfer 4K@60Hz for long distances.
Compliant with HDMI 2.0, HDCP 2.2 with 18Gbps bandwidth
ADVANCED FEATURES
Connections: HDMI A male to HDMI A male (19P19C)
Resolution up to: 4K2K (60Hz) , 4K2K (30Hz ), 1080p (3D)
Supports 4: 4: 4: 4: 2 colour sampling 2 and 4: 2: 0
Supports: HDR10, HLG, HDCP 2.2, HDCP 1.4, 3D, EDID, HEC, CEC, ARC
Bandwidth up to: 18 Gbps
Supports transmission of uncompressed HDMI 2.0 user data of 17.819 Gb / s
Immunity to EMI/RFI interference cross talk and voltage surges.
No signal loss in high noise environments
LIGHT & FLEXIBLE/LOW POWER CONSUMPTION
Slim and flexible cable with only 20 mm minimum bending radius for easy installation in tight areas.
Construction Cable: AWG 24-
Low power consumption of 250mW (max)
ONE-
CE & RoHS compliant.
Cable sheath: PVC
Plugs Material: Zinc alloy, gold plated
Contact surface: Gold plated pins
Hood: potted
Anti-
Construction Cable: AWG 24-
Cores Material: Copper / POF
Colour cable: black
HDMI Active Optical Cable (AOC) transmits HDMI (video and audio) signals over fibre optic strands to provide a thinner cable that can achieve longer distances. It is an excellent solution for all HDMI applications such as digital signage, LED Signboards, Home Theatre, and Computers.

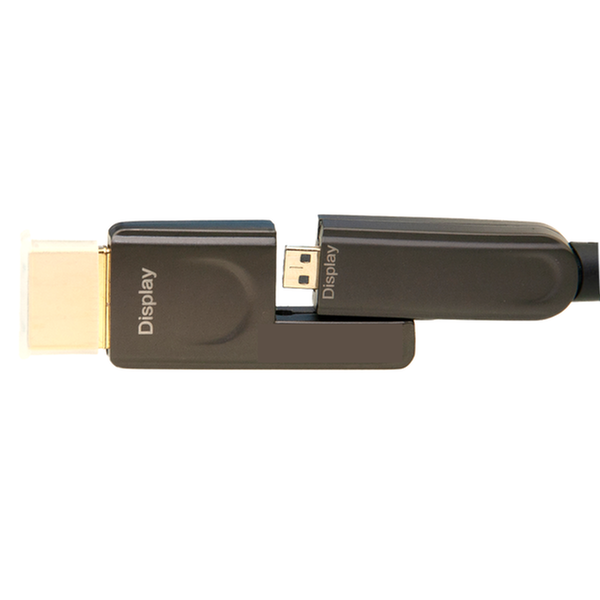

This particular model features a detachable end to facilitate getting the cable through smaller spaces. This can be particularly useful for installations through conduit.

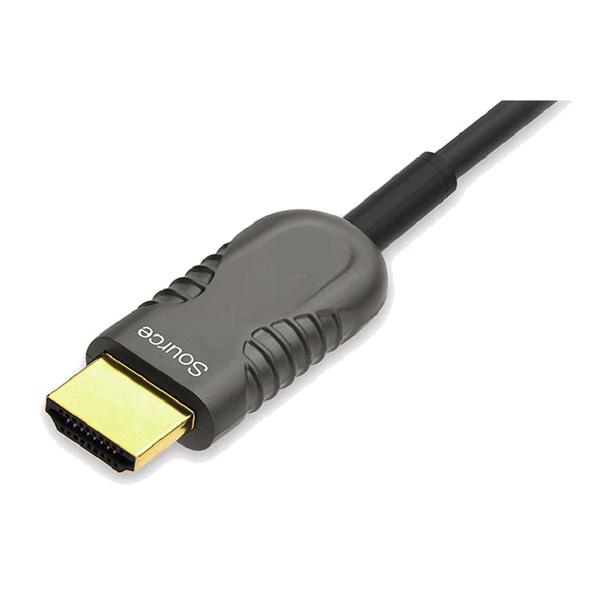

This cable is directional with the plug ends labelled source into your HDMI signal source. The end labelled display goes to the TV, monitor, or digital sign.
AOC HDMI Male - HDMI Male (detachable one end) - Fibre Optic Cable
