SPECIFICATIONS:

The AOC Armored cable is an extremely robust HDMI hybrid cable, under the cable sheath reinforce

aramid fibers and an additional armoured jacket the cable.

The cable can be loaded up to 800N, on train.

Durable, continuous load up to 100 Kg, for a short time up to 200 Kg.

With 5,8mm the cable is very thin, the outer TPU sheath makes it resistant to bending, abrasion resistant, flexible and oil resistant.

The minimum bending radius is only 20mm.

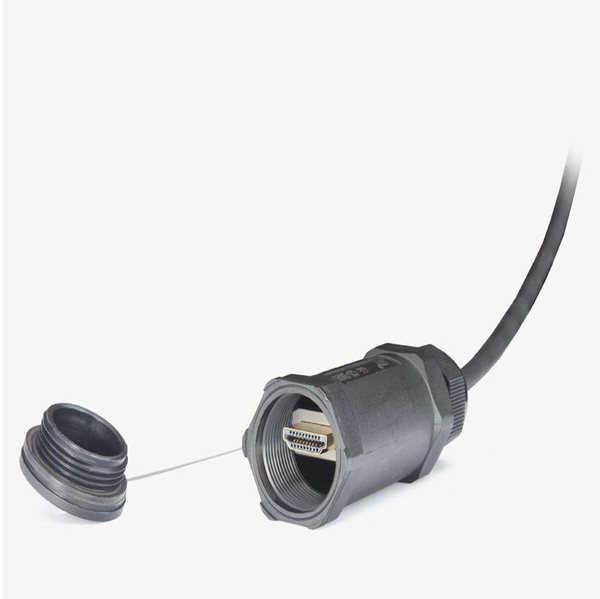

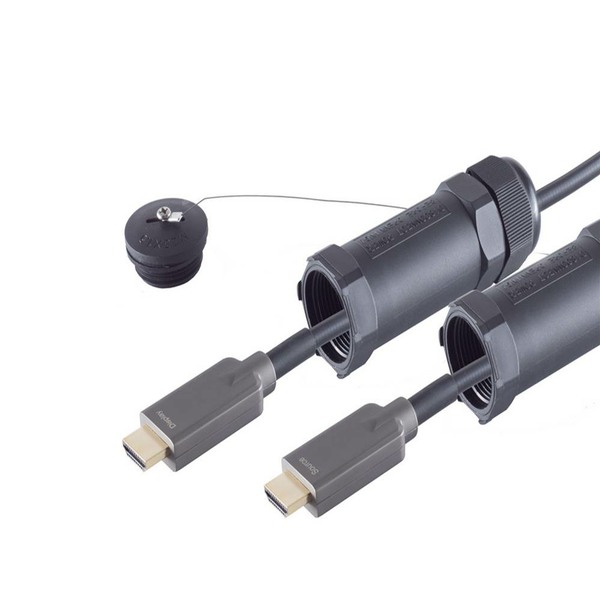

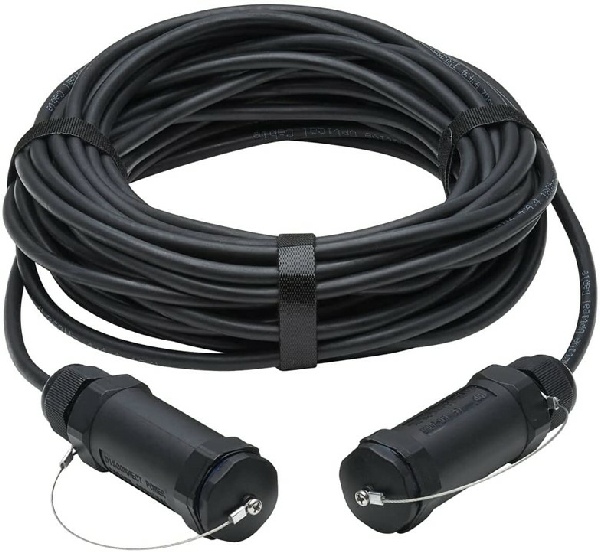

The connectors are extremely durable, they are from enclosed special protective sleeves and are thus secured against transport damage.

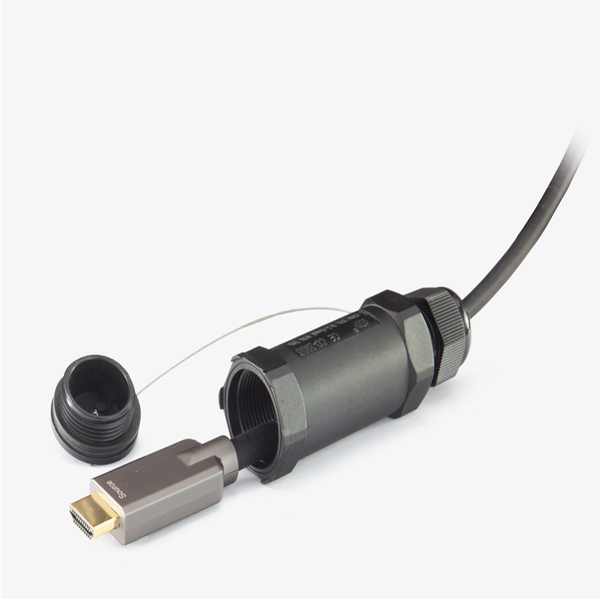

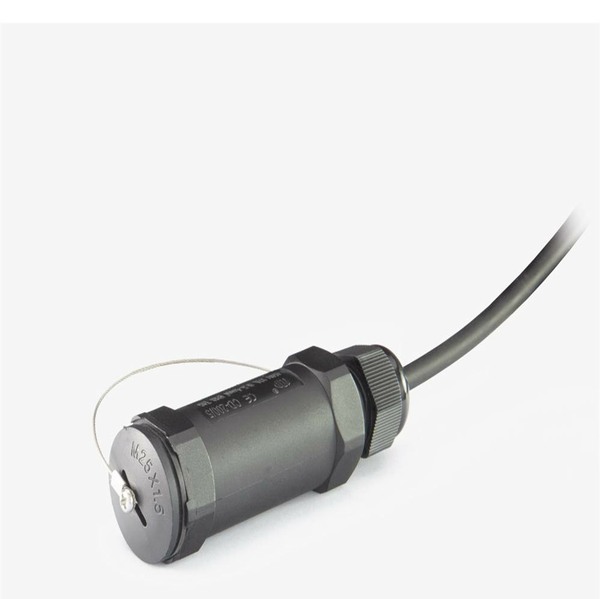

For the installation you simply open the screw cap.

· Connections: HDMI A male to HDMI A male (19P19C)
· Resolution up to: 4K2K (60Hz) , 4K2K (30Hz ), 1080p (3D)
Supports 4: 4: 4: 4: 2 color sampling 2 and 4: 2: 0
· Supports: HDR10, HLG, HDCP 2.2, HDCP 1.4, 3D, EDID, HEC, CEC, ARC
· Bandwidth up to: 18 Gbps
· Supports transmission of uncompressed HDMI 2.0 user data of 17.819 Gb / s
· Construction Cable: AWG 24-30 / OM3
· Cores Material: copper / POF
· Connector: potted
· Connector Material: Zinc alloy, gold plated
· Connector Housing: Metal
· Plug Protection sleeve: 2-fold, fixed, plastic
· Contact surface: Gold-plated pins
· Anti-kink protection: Yes

Cable type: Round cable · Reinforcement: Aramid fibers (Kevlar®)

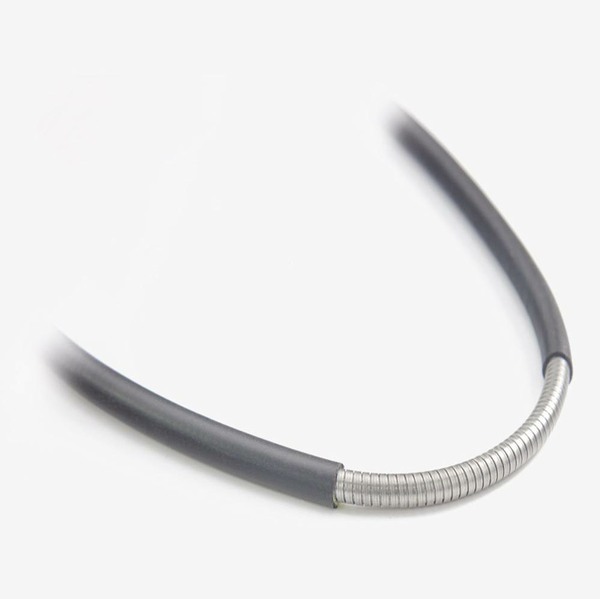

· Cable sheath: Stainless steel
· Material outer sheath: TPU
· Diameter cable (approx.): 5,8mm
· Colour cable: black

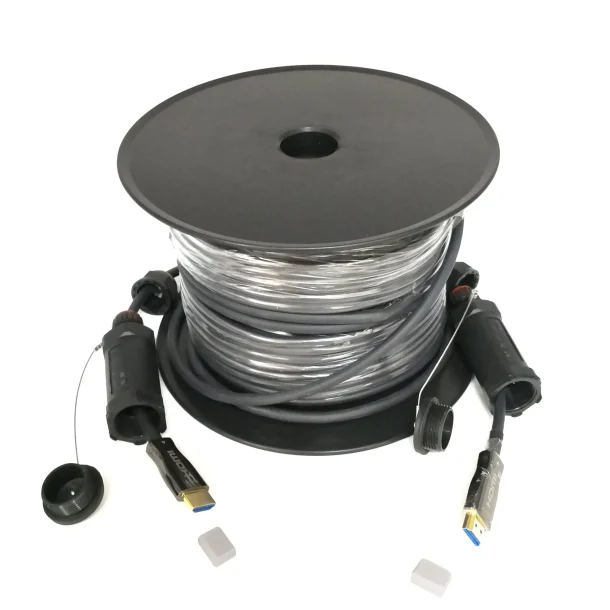

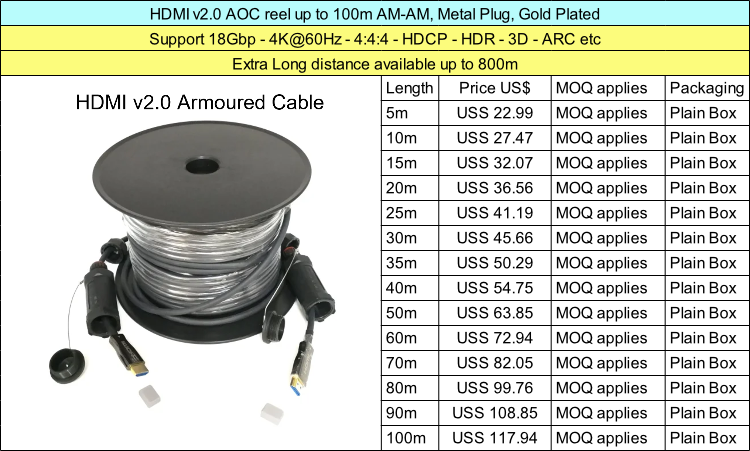

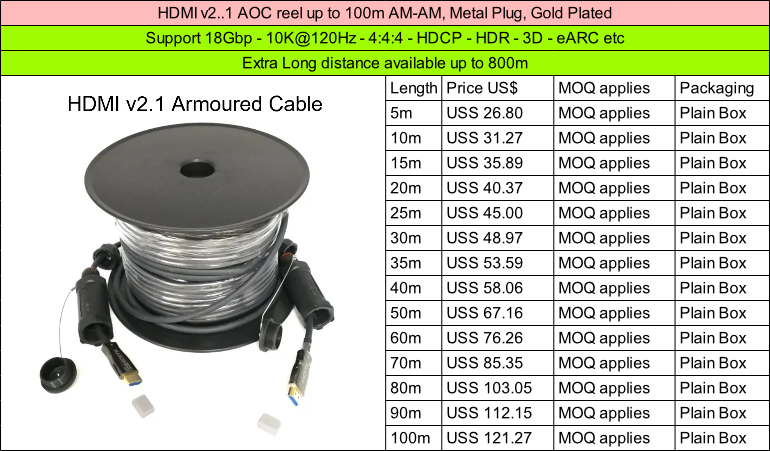

· Lengths available: 5M - 100M

Professional HDMI cable with fibre optic technology for data rates of up to 18 Gbps with a transmission distance of up to 100 m. The cable therefore supports high-resolution 4K formats with 50 or 60 Hz, 4:4:4 chroma subsampling as well as HDR, and is the solution for connecting devices with an HDMI 2.0 interface over large distances. Thanks to the solid armouring made of a steel helix and Kevlar threads, the cable is very resistant and can withstand tensile loads of up to 100 kg and even 200 kg for a short time. In addition, the solid metal connectors are protected by a plastic sleeve with a screw cap during transport and assembly/disassembly. The cable is therefore suitable for rough use with recurring assembly and disassembly cycles, e.g. in show and stage applications.

HDMI Active Optical Cable (AOC) transmits HDMI (video and audio) signals over fibre optic strands to provide a thinner cable that can achieve longer distances. It is an excellent solution for all HDMI applications such as digital signage, LED Signboards and outdoor use.

All in one cable solution

Ultra-High-Bandwidth for Audio & Video installations

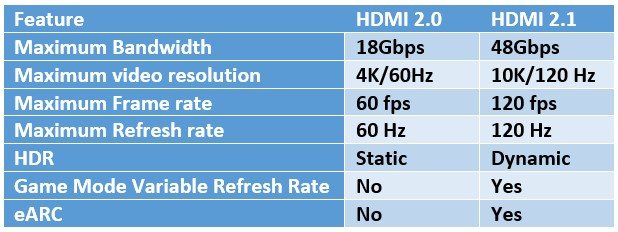

Armoured HDMI v2.0 & 2.1 Active Optical Cable
